Ball Valve

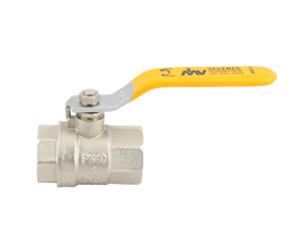

MV 101 BRASS BALL VALVE
Salient Features :
- Screwed female ends
- Full bore, Two piece design
- Quarter turn, Lever operated
- Working Temperature: -10°C to 100°C
- Forged Brass Body, BSP Thread
- Test Pressure: 30 to 40kg / cm2g

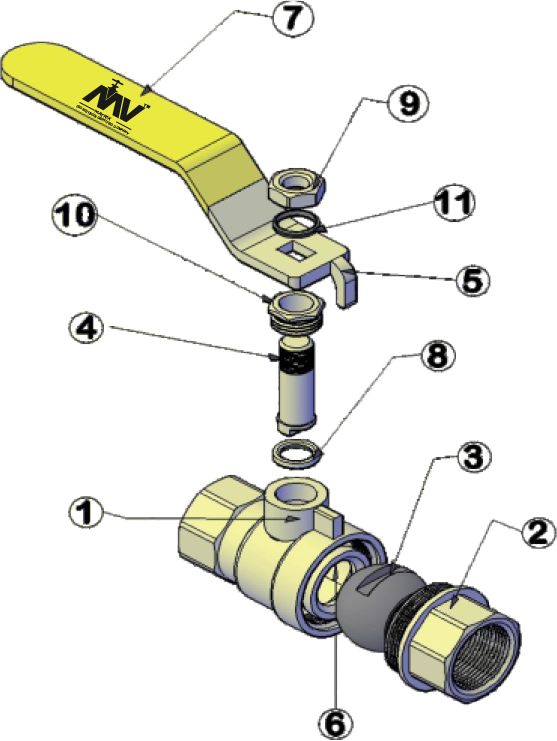

Specification:
| S.No. | Description | Material |
| 1 | Body | CW617N Brass |
| 2 | Cap | CW617N Brass |
| 3 | Ball | Chrome Plated Brass |
| 4 | Stem | Brass |
| 5 | Handle | MS – pickeled to prevent corrosion |
| 6 | Ball Seat | PTFE |
| 7 | Handle Sleeve | PVC |
| 8 | Stem Seat | PTFE |
| 9 | Nut | Brass |
| 10 | Counter Nut | Brass |
| 11 | Washer | SS |
| Chemical Composition of Brass Valves | ||||||||||||||||||||||
| CW617N Standard |
Cu | Pb | Ni | Sn | Fe | Al | Zn | |||||||||||||||
| Min. % | 57.0 | 1.6 | 0.0 | 0.0 | 0.0 | 0.0 | Bal. | |||||||||||||||
| Max. % | 59.0 | 2.5 | 0.3 | 0.3 | 0.3 | 0.05 | Bal. | |||||||||||||||

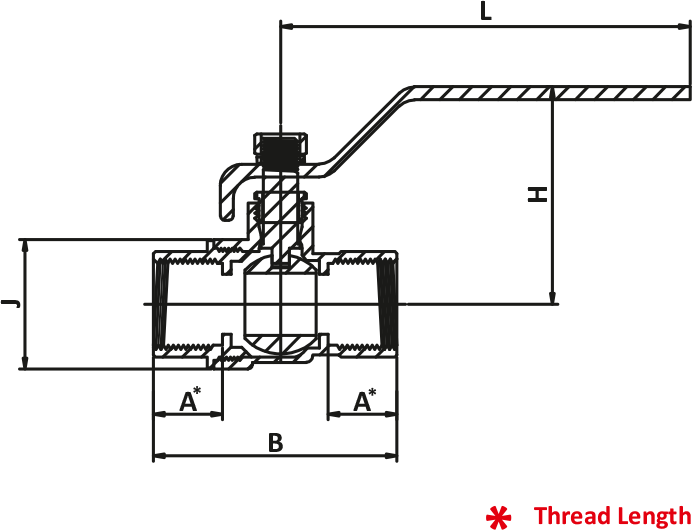

Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | B | H | L | J | PN |
| 1/4″ | 8 | 13.5 | 48.5 | 38.0 | 66.5 | Ø23.0 | 30 |
| 3/8″ | 10 | 12.0 | 45.5 | 39.0 | 63.5 | Ø25.5 | 30 |
| 1/2″ | 15 | 16.0 | 57.0 | 54.5 | 97.0 | Ø29.6 | 40 |
| 3/4″ | 20 | 13.0 | 58.0 | 58.5 | 97.0 | Ø37.0 | 40 |
| 1″ | 25 | 16.0 | 69.5 | 57.0 | 118.0 | Ø43.5 | 40 |
| 1-1/4″ | 32 | 15.5 | 75.0 | 72.0 | 127.0 | Ø54.5 | 40 |
| 1-1/2″ | 40 | 17.0 | 88.0 | 77.0 | 127.0 | Ø66.8 | 40 |
| 2″ | 50 | 17.0 | 100.5 | 92.0 | 151.0 | Ø82.7 | 50 |
| 2-1/2″ | 65 | 23.0 | 125.5 | 113.0 | 244.0 | Ø95.0 | 25 |
| 3″ | 80 | 26.0 | 138.5 | 115.5 | 244.0 | Ø107.5 | 25 |
| 4″ | 100 | 27.5 | 165.0 | 135.5 | 244.0 | Ø144.0 | 25 |
A. NICKEL POLISH
Size Range from: 1/4″ (8 mm) to 4″ (100 mm)

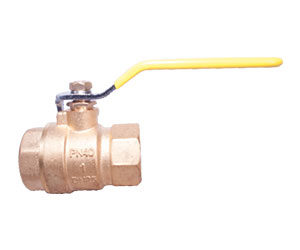

B. BRASS POLISH
Size Range from: ½” (15 mm) to 2″ (50 mm)

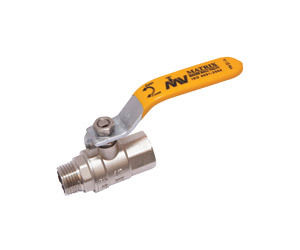

C. MxF THREADED
Size: ½”
Packing: 100

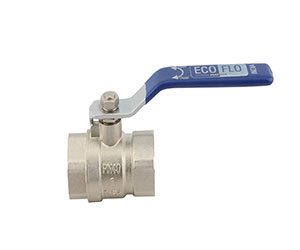

EF 212 BALL VALVE (BRAND-ECOFLO)
Product Highlights :
- Forged Brass Body
- BSP Thread
- Brass Ball and Stem
- PTFE Seal
- Suitable for Water, Air and Oil

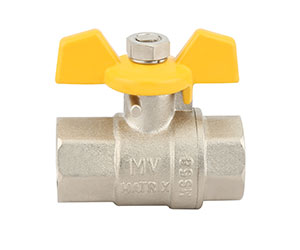

MV 106 BALL VALVE WITH BUTTERFLY HANDLE
Size Range from: 1/4″ (8 mm) to 1″ (25 mm)
