Gas Valve

MV 102 GAS VALVE

Salient Features :

  • Screwed female ends to BSP
  • Quarter turn, knob operated
  • Easy to Install
  • Forged Brass Body, Brass Nozzle
  • Full bore, two-piece design
  • PTFE Seal
gasvalve-f

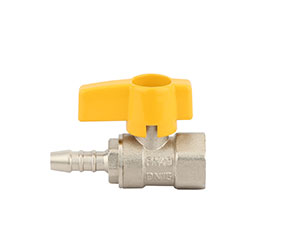

A. Female Threaded

Size Range from: 1/4″ (8 mm) to ½” (15 mm)

Dimensions:- (All Dimension are in mm)

SIZE DN A B G H L J C D
1/4″ 8 14.0 70.0 1/4″ 37.0 50.0 Ø5.5 10.0 Ø24.0
3/8″ 10 12.0 70.0 3/8″ 37.0 50.0 Ø5.5 10.0 Ø24.0
1/2″ 15 14.0 70.0 1/2″ 37.0 50.0 Ø5.5 10.0 Ø25.5
gassvalve-fgraph

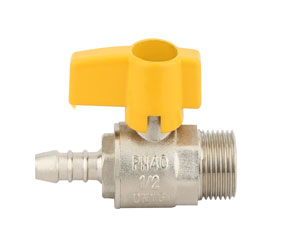

B. Male Threaded

Size Range : ½” (15 mm)

gasvalve-m

Dimensions:- (All Dimension are in mm)

SIZE DN A B G H L J C D
1/2″ 15 13.5 76.0 ½” 37.0 50.0 Ø5.5 10.0 Ø25.5
malegraph
