Y-Strainer

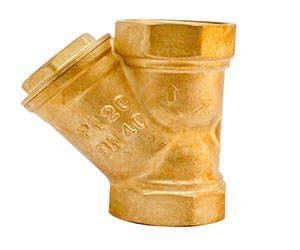

MV 107 BRASS Y – STRAINER
Salient Features :
- Working Temperature: -100°C to 100°C
- Pressure Rating: 20 Bar
- SS-304 filter
Specification :
| S.No. | Description | Material |
| 1 | End Adaptor | CW617N Brass |
| 2 | Body | CW617N Brass |
| 3 | Ring | NBR |
| 4 | Strainer | SS-304 |
Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | G | L |
| 1/2″ | 15 | 10.0 | 1/2″ | 52.0 |
| 3/4″ | 20 | 13.0 | 3/4″ | 65.0 |
| 1″ | 25 | 14.0 | 1″ | 75.0 |
| 1.1/4″ | 32 | 18.0 | 1.1/4″ | 89.5 |
| 1.1/2″ | 40 | 20.0 | 1.1/2″ | 103.5 |
| 2″ | 50 | 23.0 | 2″ | 125.0 |
Size Range from : ½” (15 mm) to 2″ (50 mm)
