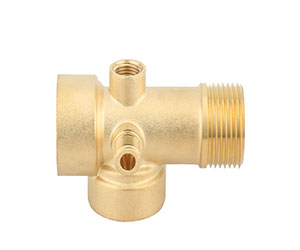

Five-Way Tee
MV 108 FIVE-WAY TEE
Salient Features :
- Screwed male & female ends
- Single piece design
- Forged Brass Body
- BSP Thread

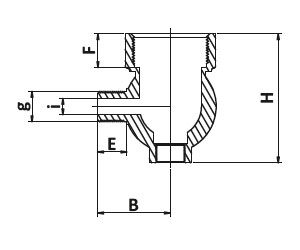

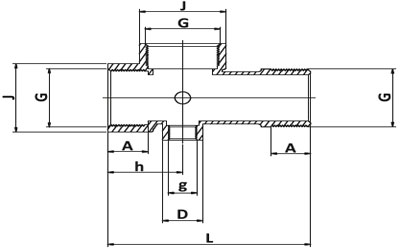

Dimensions:- (All Dimension are in mm)
| SIZE | DN | A | B | D | E | F | G | g | J | i | H | h | L |
| 1″ | 25 | 18.0 | 31.0 | Ø18.0 | 12.5 | 14.5 | 1″ | 1/4″ | Ø39.0 | Ø7 | 55.0 | 33.25 | 90.0 |
Size Range : 1″ (25 mm)
